SKU: 17167

Meet the new Highline, our most refined, versatile dropper post yet.

Our new Highline dropper post combines the best features across our lineup into one streamlined range. It now features a reduced insertion length and lower stack height, improving frame compatibility and fit across a wider range of bikes. The new Highline also includes adjustable travel, allowing you to fine-tune your drop by up to 20mm, plus a lower-profile actuator for a lighter lever feel and smoother return speed. To complete the package, the Highline possesses an easy-install quick-release head that makes setup faster than ever.

With sizes ranging from 100mm to 230mm, a faster emulsification cartridge, and a durable build backed by a 5-year warranty, the Highline is built for every rider and every frame, from cross-country to enduro.

  • Adjustable Travel feature
  • 2-bolt quick-connect head
  • Emulsification cartridge (gas/oil mixed)
  • Internal routing
  • Quick-connect mechanism for ease of cable installation
  • Linear actuator for quick return speed
  • 45mm minimum stack height
  • Shortened insertion length
  • Remote sold separately

e-mtb

enduro

trail

xc

€249,99
/
Tax included.
  • Add Shoes & Save 20% Using Code: MATCHBUNDLE
Diameter
34.9
31.6
30.9
27.2
Length
  • Low stock - 1 item left
  • Inventory on the way
Final Sale

Dimensions and Weight Refer to image below

Material 7075-T6 aluminum

Sealing Premium Trelleborg®

Keys & Bushings POM + 10% OF and POM + MOS2

Cable and housing Jagwire®

Adjustable Feature Not available for the lengths 60 mm, 60 mm long, 80mm, and 80mm long

Internal Adjustment Up to 20 mm by 5 mm increments

Warranty 5 years

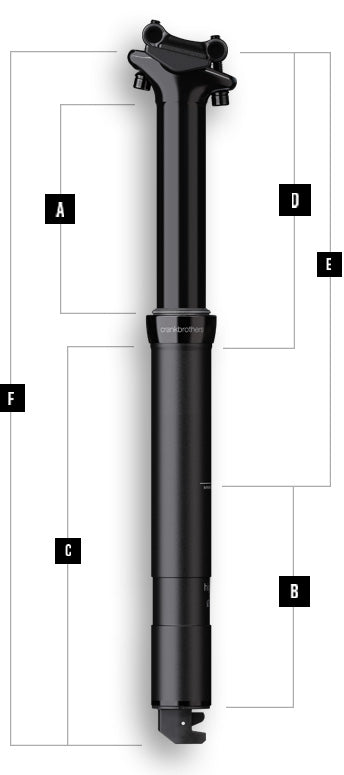

Highline 34.9 Size Guide

ATravel:100mm125mm150mm170mm200mm230mm
BMin. Insertion Length:100mm100mm100mm100mm100mm125mm
CMax. Insertion Length:196mm221mm246mm266mm296mm326mm
DMin. Extended Length:154mm179mm204mm224mm254mm284mm
EMax. Extended Length:228mm278mm328mm368mm428mm463mm
FTotal Post Length:350mm400mm450mm490mm550mm610mm
GMin. Stack Height:47mm47mm47mm47mm47mm47mm
HSetback:0mm0mm0mm0mm0mm0mm
JWeight 34.9:494g536g585g622g677g732g
Adjustable Travel

Adjustable Travel

We added a new adjustable travel system that lets you fine-tune your dropper height for a perfect fit. You can reduce the travel by up to 20 mm in 5 mm increments by simply repositioning the keys on the quill; no extra parts needed and no need to remove the post completely from your frame. For example, you can start with the 230 mm post and adjust it down to 210 mm in 5 mm increments for the perfect setup.
Actuator

Actuator

The new, low-profile actuator is nearly half the size of the Highline 3 & 7 for improved frame clearance. We also tuned the cartridge so that it requires less force to drop and gives the post a smooth feel with a light touch and snappy response.
Reduced insertion length

Reduced insertion length

The shorter insertion depth allows to fit a wider range of bikes, including those with extra-small and small frames, as well as bikes with tight tolerances.
Low stack height

Low stack height

The distance between the seatpost collar and the seat rails is minimized, allowing riders with shorter legs or bikes with longer seat tubes to run longer-travel droppers. This adjustment means the saddle sits lower when fully compressed, providing more comfort and freedom of movement on the trail
Head

Head

The Highline’s two-bolt saddle clamp includes a quick-release rear bolt, allowing for easy installation and quick saddle adjustments. It has a 45 mm stack height measured from the collar base to the rail center when fully dropped.

Product Videos

FAQs

The Highline dropper post package includes the dropper post, cable, housing, caps for the housing, and a ferrule to crimp on the cable end.

First, determine whether your bike uses external or internal cable routing; the Highline is designed for internally routed frames only. Next, check your seat tube diameter to ensure compatibility. We offer four different diameters: 27.2, 30.9, 31.6 & 34.9.

Check out our installation video at this link.

Check out our instruction video at this link.

Maintenance intervals can vary depending on riding conditions and frequency of use, but as a general guideline, we recommend wiping down the post with a clean rag after every ride and regularly checking the collar and clamp assembly to keep everything running smoothly. For deeper maintenance, we recommend a more complete service around every 150–175 riding hours to maintain optimal performance and long-term reliability.

Purchase a refresh kit here and follow the steps in this video.

The Highline 11 features a carbon quill and titanium bolts, which are not available in the new Highline. In the new one, you'll find several updates: an adjustable feature, a shorter insertion length, and a new actuator system that are not present in the Highline 11.
